PYXIS PLUS

Customized Color
Customized Size
Perimetral
Intensive
Timer
Air Exchange
Filter Alarm
Led Light
Dimmable Light

Technical Features

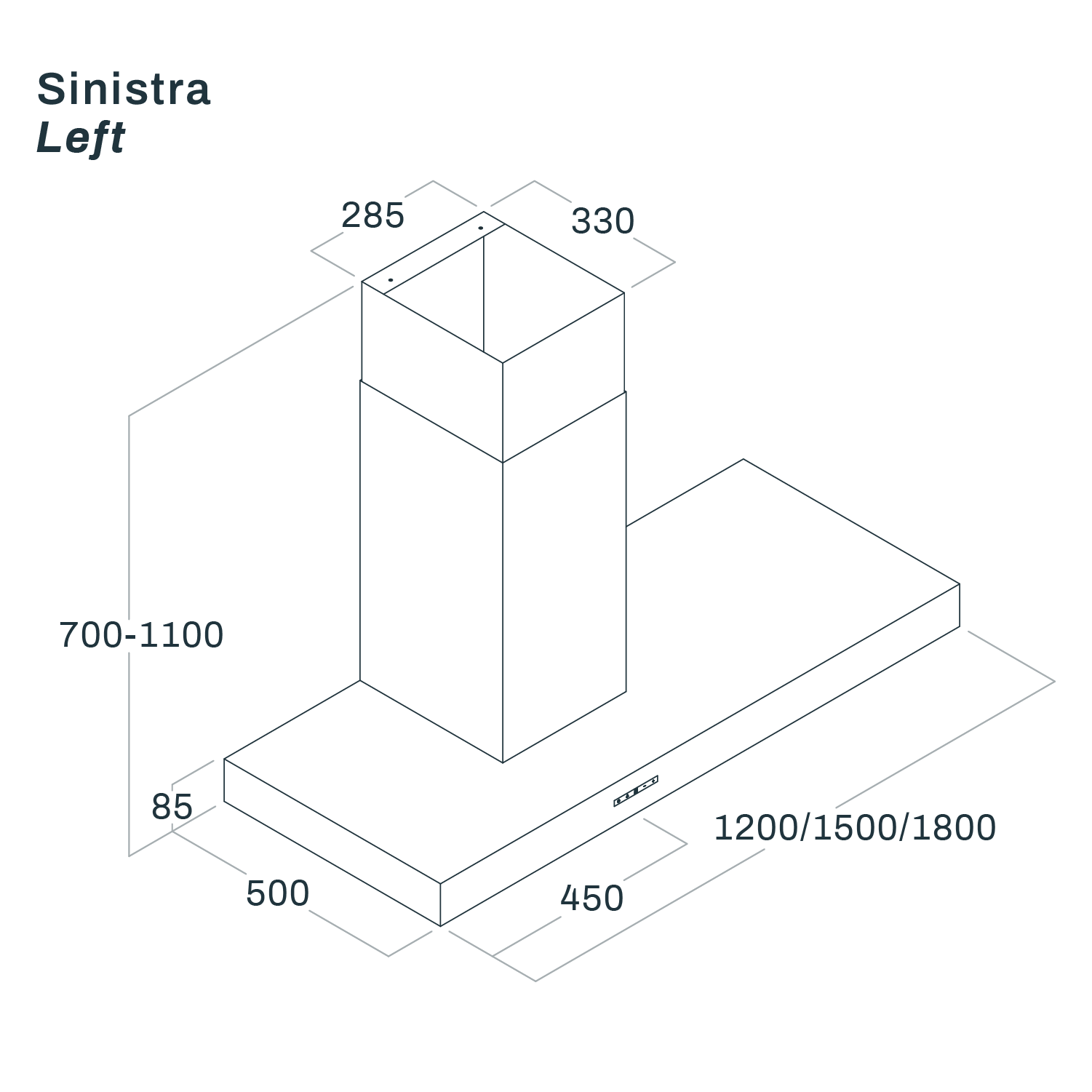

Sizes 120 / 150 / 180 cm
Custom size on request
Version Suction / Filtering (optional)
Controls Touch control 3+I
Lighting Dimmable led lamps
3×2,2W (120) / 4×2,2W (150) / 5×2,2W (180)
Airflow 750 (m3/h)
Pressure 570 (Pa)
Noise level 44 Min / 62 max (lw[dba])
Motor power 265 (w)
Duct size Ø 150 (mm)
Classe Energetica A

Filtering kit KEL0423KIT
Rectangular charcoal filter 55046266
Cylindrical charcoal filter 55046241
Rectangular charcoal filter included in the filtering kit

S/steel satin
Matt white
Matt black
Custom color on request

Download


Currently not available

Functions that improve performances

Customized Color

It’s possible to create the products with customized colors on request.

Customized Size

It’s possible to create the products with customized sizes on request.

Perimetral

This is a system called perimetral aspiration which conveys the fumes on the sides of the panels, allowing to have a nicer design, to reduce the noise of the hood, to increase the capturing of the fumes and to simplify the cleaning operations of the products.

Intensive

It activates the motor at the highest speed for a certain period of time, and then it automatically reduces the speed. This function is useful in the cooking phases where a lot of fumes are produced.

Timer

When you have finished the cooking, this function allows to have the hood working for a certain period of time to complete elimination of the fumes and the remained odors. After that period of time the hood switches off in an automatic way.

Air Exchange

This function allows to plan the start of the aspiration in automatic way during the day. This function is useful to guarantee a continuous air exchange. You exclude the function in an automatic way with the normal use of the cooker hood.

Filter Alarm

The controls is giving automatic advice when it is necessary to do maintenance both of the carbon and the grease filters.

Led Light

The cooker hoods are equipped with led lighting that are allowing to reduce both consumption and working temperature, obtaining long time lasting efficiency and reliabily.

Dimmable Light

It is possible to change light intensity, enabling to have a customized led light.
