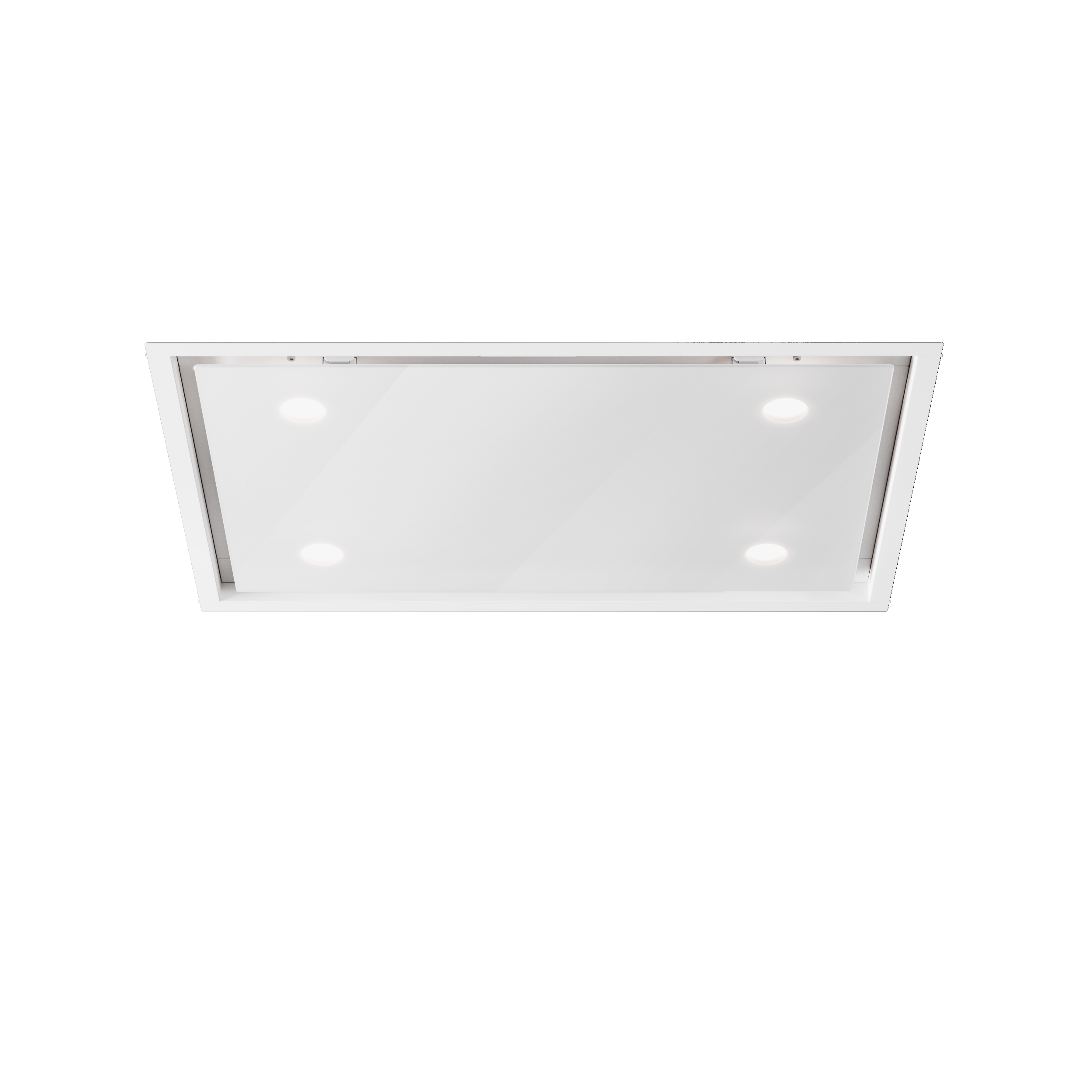

SCUTUM

Intensive
Perimetral
Timer
Air Exchange
Filter Alarm
Led Light
Dimmable Light
Remote Control

Technical Features


Sizes 96 / 116 cm
Version Suction / Filtering (optional)
Controls Electronic 3+1
Remote control 3+I
Lighting Led lamps 4×2,1W
Dimmable led strip 2×5,3W
Airflow 740 (m3/h)
Pressure 550 (Pa)
Noise level 45 Min / 66 max (lw[dba])
Motor power 220 (w)
Duct size 220×90 (mm)
Energy Class A+

Long life filter 55081003-2
Ceiling filtering kit KKIT003CF

S/steel satin + white glass
Matt white + white glass
Matt black + black glass

Functions that improve performances

Intensive

It activates the motor at the highest speed for a certain period of time, and then it automatically reduces the speed. This function is useful in the cooking phases where a lot of fumes are produced.

Perimetral

This is a system called perimetral aspiration which conveys the fumes on the sides of the panels, allowing to have a nicer design, to reduce the noise of the hood, to increase the capturing of the fumes and to simplify the cleaning operations of the products.

Timer

When you have finished the cooking, this function allows to have the hood working for a certain period of time to complete elimination of the fumes and the remained odors. After that period of time the hood switches off in an automatic way.

Air Exchange

This function allows to plan the start of the aspiration in automatic way during the day. This function is useful to guarantee a continuous air exchange. You exclude the function in an automatic way with the normal use of the cooker hood.

Filter Alarm

The controls is giving automatic advice when it is necessary to do maintenance both of the carbon and the grease filters.

Led Light

The cooker hoods are equipped with led lighting that are allowing to reduce both consumption and working temperature, obtaining long time lasting efficiency and reliabily Each product design needs to have its own led light integrated, so there are in use single led spots, led bars, or internally produced led panel in glass and stainless steel with a beautiful uniform light. In order to fulfill any customer’s wish it is possible to have different light colour solutions or RGB system.

Dimmable Light

It is possible to change light intensity, enabling to have a customized led light.

Remote Control

With its design, thin and light, it allows to activate all the functions at distance. On some models it is delivered with the hoods, on other models it can be purchased separately.
